1
The workpiece table can be variably adjusted according to scale. Inclination from +15° to -15°.
2
The special grinding belt, supplied in various grain sizes, produces a perfectly even, clean and straight grinding result. Optimum noise insulation ensures especially quiet operation.
3
The belt guide in an optimum design combines with an ingeniously arranged rotating brush roller to clean the grinding belt continuously, so that clogging is impossible, even with wet plaster.
4
The grinding belt can be changed quickly and easily with minimum effort. The entire front section can be removed for unhindered access to the grinding belt and brush.
Description

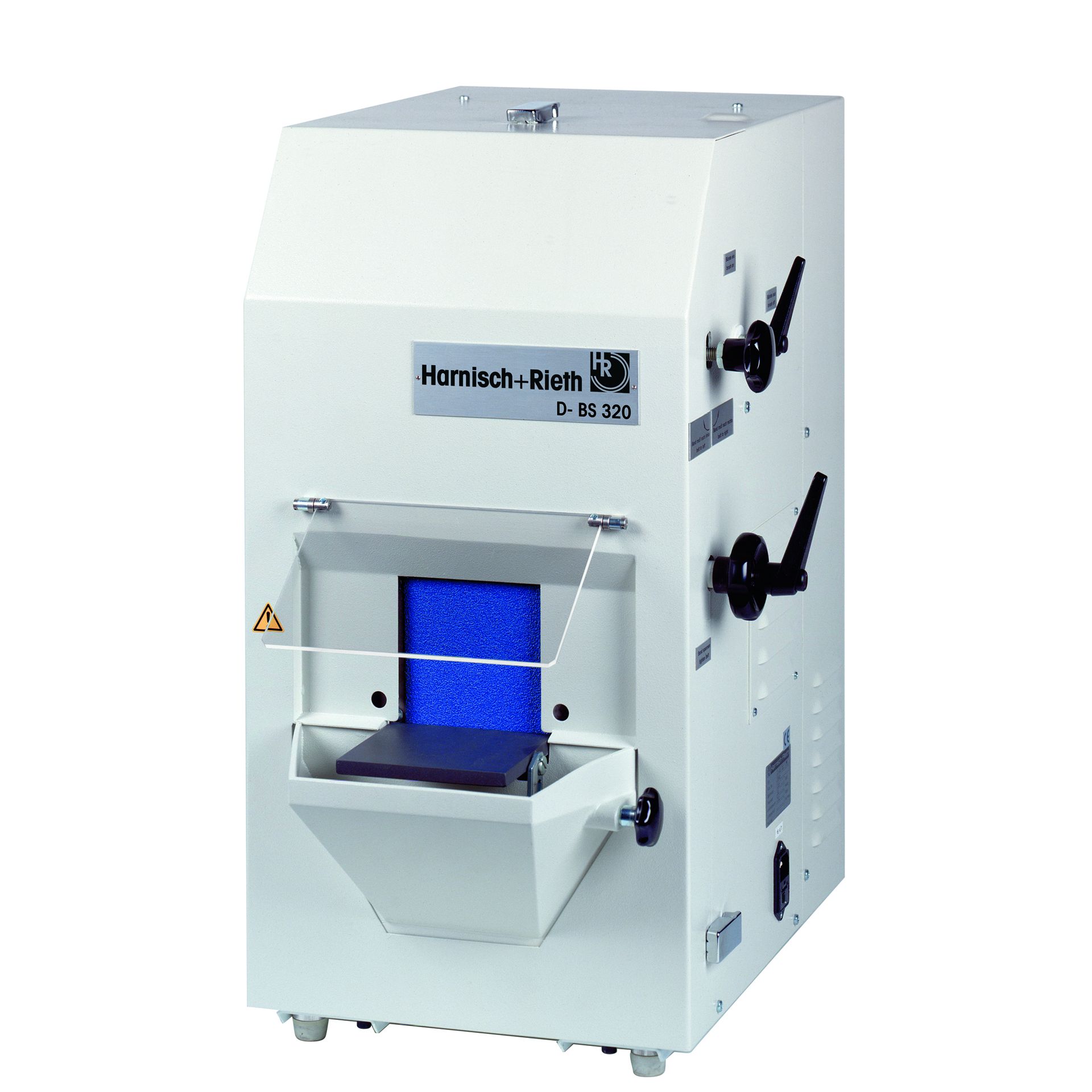

The D-BS 320 F belt grinder is specially designed for the dry grinding of denture models. It enables all the materials found in the laboratory, from super-hard plaster and investment materials to Plexiglas, to be processed effortlessly and efficiently. Grinding without water retains the maximum quality and accuracy of the model produced by the dental technician.
Technical data
| D-BS 320 FO | |
|---|---|
| Width | 320 mm |
| Depth | 425 mm |
| Height | 640 mm |
| Electrical connection | 230 V, 50Hz |
| Power consumption | 0.37 KW |
| Sound pressure level | 70 dB(A) |

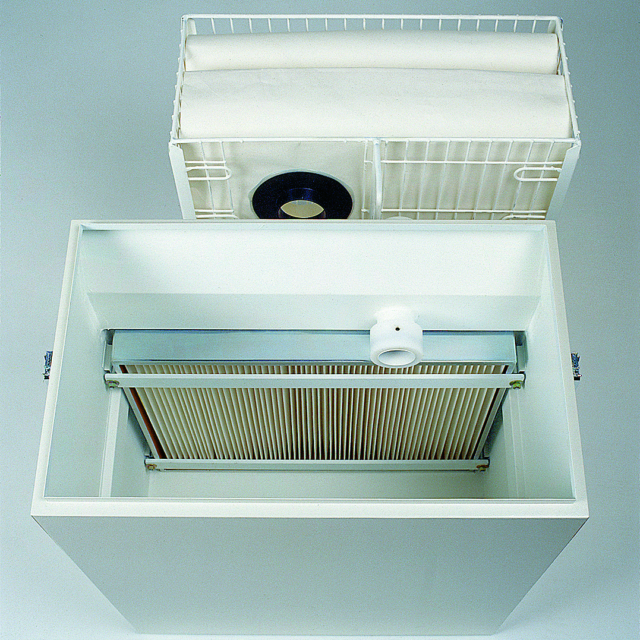

| Microfilter | |
| Grinding area | 100 mm x 100 mm |
| Weight | 51 kg |
| Weight FIlterbox | |
| Housing | Durable, environmentally friendly steel plate housing, RAL 9002, powder coated |
Downloads
No downloads found.
Product versions
| Article no. | Type | Integrated extraction unit | External extraction unit |
|---|---|---|---|
| 10505 | D-BS 320 FO |
FAQ
Why is the grinding belt knocking while grinding?
The bonding point of the grinding belt touches the edge of the guide plate. Always use Harnisch+Rieth grinding belts.
The grinding belt has been calibrated, why does it still drift to the left and right?
Check the upper pulley, it may need replacing.
Why are models bulging, not flat, after grinding?
The guide plate is worn and needs replacing.
